The Search for an Effective and Environmentally-Safe Antifouling

What are the other options?

The perfect antifoul will stop the pests from fouling our hulls but leave them to live in peace on the rocks nearby.

As I said at the outset, the perfect solution to the antifouling problem is one which does no harm. Conventional antifoulings (including Coppercoat) work by poisoning sealife. Surely, by this stage in our technological evolution mankind ought to be able to come up with a safer method of preventing micro-organisms from setting up home on our hulls?
As in all things, prevention is better than a cure; so rather than poisoning the creatures which attach themselves to our yachts what we need to do is find a certain something which will persuade them that they don’t want to live with us.

We’re not the only ones

Happily, yotties are not the only ones looking for a solution to this problem. The accumulation of weed and crustacea on a ship’s hull can increase its drag by up to 60% (according to various sources) and the drag increase has been shown to decrease speeds by up to 10%. Since the shipping companies don’t want their ships to go slower, the engineer will step up the engine revs – with a resultant increase in fuel consumption of up to 40%. Besides contributing hugely to the cost of shipping, increased fuel consumption also adds to the size of a shipping company’s carbon footprint; and if you’ve ever watched a ship trailing a scarf of smoke across the sky you will know that their footprints are already far too big.

No smoking, please. (This one isn’t even underway – he’s anchored – yet he’s still burning down the sky.)

(According to International – who, it should be noted, are keen for us to agree that poisoning the sea is preferential to poisoning the air – “The world’s fleet uses 350 million tonnes of fuel annually, emitting some 1.1 billion tonnes of CO2 and over 10 million tonnes of SO2.”)

If the shipping industry had been banned from using tributyl tin when we yotties were denied its use, more than 20 years ago, then the problem of finding a safe antifouling would surely have been solved much sooner; because, as we have seen, they simply cannot afford NOT to find a solution! As it is, the problem appears to have been shelved and it is only now that we are beginning to see the first fruits of lateral thinking.

Sounds good

One of the most interesting deterrent solutions to the antifouling problem is ultra-sound.
Blue & Green Marine explain the physics of the system in the following way:

The ultrasonic transducers create a finely tuned pulse of ultra high frequency sound waves in the water surrounding the hull. These waves cause cavitation within the cell walls of the single-celled organisms that form a layer or ‘bio film’ around all objects immersed in water. The fierce cavitation disrupts the cells’ structure. … With the algae unable to develop, the first link in the food chain is removed and larger, more complex organisms – slime, weed, worms, shellfish – are unable to colonise.

Yes, that’s the sort of thing I had in mind. And the manufacturers assure us that no contaminants or pollutants are used or created, and the ultrasonic pulses are harmless to fish and inaudible to marine mammals.

Rival manufacturer Ultrasonic Antifouling make similar claims for their product. As they also say, You will only install this once. And you won’t get covered in paint when you do it!
Good point. With an effective antifouling system in place one might never need to slip the boat again. Think of the money and the hassles that that would save!

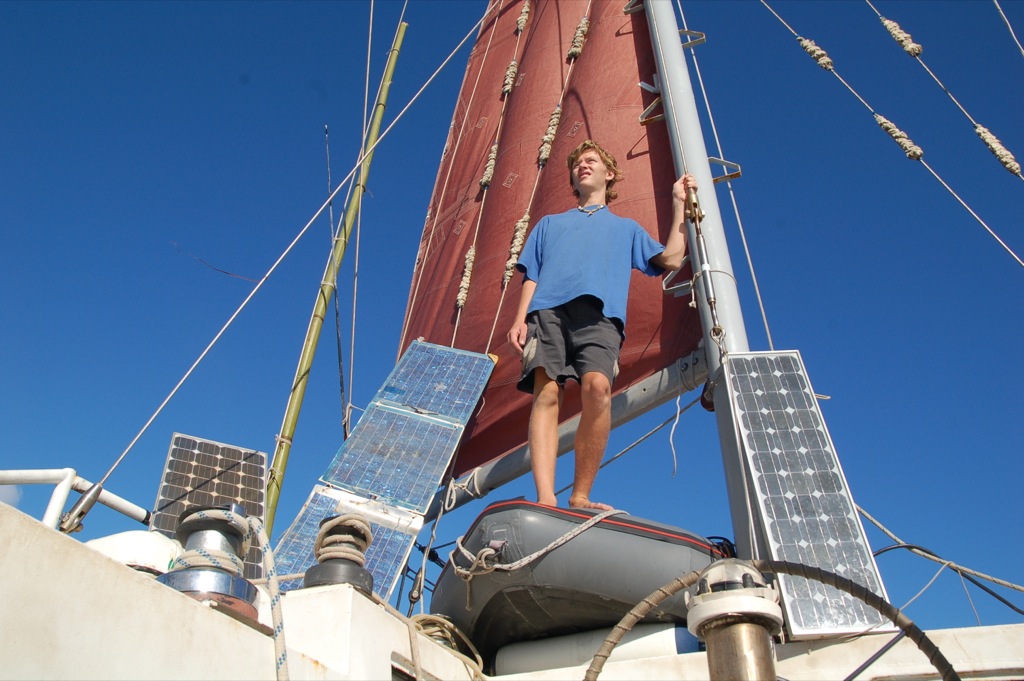

Off the grid – every drop of sunshine counts, and so the solar panels have been moved to positions of maximum advantage.

Of course, the problem with ultrasound is that it uses power – and power is a thing which is generally in short supply aboard a self-sufficient yacht, making its electricity from the wind and the sun.
Ultrasonic Antifouling say that their Ultra 10 Series I system uses a maximum of 0.7 amps when it’s running off the ship’s batteries. Aboard Mollymawk we would need the Series II system, for boats over 10 metres in length. This is said to use a maximum of 1.1 amps, which works out at 26.5 amp-hours per day. To generate this amount of electricity would take five hours when our solar panels are charging at 5 amps, or half that time when the sun is blazing down from on high and they’re really kicking out the juice.
To put it another way – Ultrasonic Antifouling’s system would use the same amount of power, in a 24 hour period, as my lap-top would consume in 6 hours. This may not sound too much if you’re wired into a marina, but if you live “off the grid” you will know that it is somewhat unrealistic to expect to be able to provide this amount of “spare” power on a daily basis. There are days, when the sun doesn’t shine and the wind doesn’t blow, when neither Caesar nor I can use our computers for more than an hour. The idea of topping up the batteries by running the engine would obviously be counter productive. There’s no point in robbing Peter to pay Paul; if we’re trying to live a clean green lifestyle there’s no point in burning fossil fuels in order to safeguard the sea.

Blue & Green claim that their system draws only an average of 0.06 amps (60 milliamps). Now that’s more like it! But note that we are not comparing like for like, because whereas one manufacturer talks about the maximum power usage the other is talking about an average.

So why haven’t we tried it yet?
Mainly because it’s very expensive. Blue & Green don’t seem to give prices on line, but Ultrasonic Antifouling’s Ultra 20 series II system costs more than £1,000. Before we find that kind of money we need to know, for sure, that the system is going to work.

If anybody out there has first-hand experience of ultra-sound antifouling, we would be very pleased if you could send us your verdict (using the comment box), and we will post it here for other readers to see.

The natural approach

One approach to the problem of antifouling is to take a look at the professionals. How do whales and dolphins and fish manage to avoid collecting passengers? Come to that, why aren’t barnacles themselves covered in green slime? Why doesn’t seaweed adhere to corals and sponges and so forth?
Turning that question on its head, why is that boats and other non-living objects do attract fouling?

Why aren’t dolphins covered in weed and barnacles?

The answer seems to be that inanimate objects attract a layer of small organic molecules which are ever present, in varying quantities, in sea water. Within 24 hours of having been immersed, the underside of the boat is coated in polysaccharides and proteins. These, which we think of as the building blocks of our diet, are actually supper in their own right for bacteria and phytoplankton (microscopic algae), and so they take their places at the table. After about a week, the bacteria and phytoplankton form a biofilm coating the entire hull; and, of course, they in turn attract other organisms to attend dine. Next to join the feast are larger micro-algae and finally, when these have got themselves established, we see the arrival of the more annoying guests: the barnacles, oysters, ascidians, sponges, bryozoans, hydrozoans… and, eventually, the skeleton shrimps and other small creatures which inhabit these utterly fascinating but very tiresome zoo-forests.
The place to break the chain is right at the first link… if only we can.

Attempts to emulate the abilities of our animal cousins are called biomimetics. So far as antifouling methods are concerned, the animals have two techniques: they either exude a chemical which inhibits hitch-hikers or else they possess a skin which is unsuitable for colonisation.
One obvious way of being unsuitable is to be too slippery – but it is far from being the only means. Sharks are not at all slippery. On the contrary. And yet you don’t see sharks covered in algae.

Sharklet

The US Naval Surface Warfare Centre estimates that “bio-fouling reduces vessel speed by up to 10 percent. Vessels can require as much as a 40 percent increase in fuel consumption to counter the added drag. For the US navy, that translates into roughly one billion dollars annually in extra fuel costs and maintenance” – so they’re pretty keen to find an effective solution to the problem; and they seem to think that shark skin just might fit the bill.

I can hear you thinking, “What are they going to do? Mix it into their paint? Or are they going to glue it on like wallpaper? And won’t the shark preservation people be upset…?

Did you ever see a shark looking like this?

Shark skin consists of microscopic overlapping plates – so the American researchers simply copied the pattern. According to them, this imparts “a 77% reduction in microfouling settlement”.
Sharklet is currently being tested by the US navy and one day, perhaps, we will all be able to take advantage of their discoveries.

Sponge

Whereas mobile forms of marine life seem to depend largely on being unsuitable for settlement, more static species tend to employ repellents. Seemingly, the most effective natural biocide is something called 3,4-dihydroxybufa-20,22 dienolide. It’s derived from the poison of the common toad, Bufo vulgaris, and it’s over 100 times more effective than TBT at preventing fouling.
On the whole, it doesn’t sound very environmentally friendly, even if it is totally natural…
Happily, deterrent solutions to fouling don’t have to be toxic – they don’t have to kill – they just have to taste nasty.

One company which has spent many years researching non-toxic repellents is Poseidon. They commenced work in this arena in 1987 when they began to study any natural compounds which displayed repellent activity against mosquitoes, sharks, or fouling invertebrates. Eventually they established a chemical library containing several thousand natural compounds, and amongst these one of the most promising, so far as we are concerned, was a substance derived from a soft coral called Juncea juncea.

Poseidon has now developed a paint which is based on the active compound exuded by the coral, and they are said to be on the point of releasing a product which will be suitable for us to daub on our hulls. We look forward to finding out more about it.

Bad ideas

Just because a product is effective in inhibiting the growth of weed and barnacles that doesn’t mean we ought to be putting it into the sea. Indeed, it goes without saying that most of the things which kill weed and barnacles are things which we should NOT be putting into the sea.

Is that TBT you’re wearing still, or could it be something even nastier? (Whatever it is, it seems to be effective. Not a barnacle in sight.)

In ye very olde days ye Phoenician sailors used arsenic and sulphur.
The first proprietary paints, produced in the 19th century, employed arsenic and mercury – just to be extra sure, I suppose. Coming more up to date, some friends of ours used to mix tetracycline into their antifouling. Quite apart from the damage this may have done to the environment it probably hasn’t done much for the effectiveness of the drug.

We need to be careful to ensure that the new concoctions on offer are not worse, even, than TBT.

According to one report:

The sedative medetomidine [used in veterinary practice] has proved effective at inhibiting fouling and is now being trialled by the EU as an ingredient for the antifouling paints of the future. However, Research at the University of Gothenburg, Sweden, has shown that high concentrations of this substance can have an impact on the marine environment.

Well, I guess it stands to reason that a drug used for sedating animals would have an effect on animals… Seemingly, it prevents barnacle larvae from attaching themselves to vessels, but when the Swedish research team fed it to rainbow trout, cod, turbot, stickleback and salmon they found that it made the fish paler.
While the paleness itself isn’t harmful, said the researcher, functioning pigmentation is very important for a fish’s camouflage, communication and UV protection.
Fish which had been brought into contact with the sedative were also shown to be slightly less active – now there’s a surprise! – and to have less of an appetite.
Blood sugar content and liver size are also shown to be reduced while the fish are under sedation, and a detoxifying enzyme in the fish’s liver is affected.

In case you’d forgotten…

We all know what tributyl tin has done to the environment. A broad spectrum algicide, fungicide, and insecticide, TBT was first used in antifoulings in the 1960s. Within ten years it had already been linked to

high mortalities of oyster larvae. Research showed that a concentration of just 2.4 nanograms of TBT per litre is needed to produce sexual changes in dog-whelks, leading to sterility.

Whales, dolphins, and people too, can be affected by toxins in the food chain.

Not too worried about the shellfish? Well TBT is also toxic to larger forms of life, including dolphins, whales, seals, and humans. It is been found in various members of the marine mammal families in the United States, south-east Asia, the Adriatic Sea and the Black Sea. These animals have absorbed the TBT via the food chain. Needless to say, if they can be poisoned from eating fish, so can we.
TBT can be broken down – but only in the presence of oxygen. When it accumulates on the seabed its decomposition is slower and it remains toxic for several years.

TBT has been described as the most toxic substance ever deliberately introduced into the sea. But the good news is that the ban is paying off. In certain areas, close to marinas, where the oysters and whelks were once being damaged the population is now recovering its health.

Worse to come?

The lesson, surely, is that we need to be very careful what we try next. And bearing in mind that, for most companies, the main motivation is greed, we, ourselves, need to keep watch over the situation.

One of the latest ingredients to find its way into antifoulings – and into the sea – is a thing called Econea. According to Pettit, Econea is, quite simply, the future of antifouling technology. Their top of the range product is called Ultima Eco and they proudly tell us that it contains over 53% more Econea than Interlux Pacifica Plus, and over 106% more than Sea Hawk Smart Solutions.
At no stage do Pettit tell us what the wonderful new product actually is – they just tell us that it breaks down quickly in the environment and its breakdown products are biodegradable – so I checked it out for myself.

Rummaging around the web I came across the Fluoride Action Group’s site, and on the site a page which contains an excerpt from the US Federal Register.
According to the register an application was made in 2005 for two new “Pesticide Products Containing Active Ingredients Not Included in any Previously Registered Products.” The products are described as antifoulant paints and the ingredient is Econea. The notes on the registration say, This chemical formula is similar to Chlorfenapyr (CAS No. 122453-73-0), which is one of the most reproductively toxic pesticides to avian species that EPA has evaluated. It is also a persistent compound in soil and sediment. Brain effects noted in rat and mice studies: spongiform myelopathy and/or vacuolation. In mice studies spongiform encephalopathy.

Just what we need sloshing around in the sea, hey!

I ran this one past Alex Walsh, of e-Paint (see below), and he had this to say:

Econea works for controlling barnacles, but so does copper.  Asked which I would take with a spoon full of sugar and I’d say copper. I don’t believe that fluorinated pesticides “degrade quickly in the environment.”  Sure they break down, but are the decomposition products safe?
Not a lot is known about econea.  It could be that environmental consequences of using the active make TBT look benign.

Before you buy your next batch of antifouling, read the small print and find out what’s inside; then look it up on line and find out what the active ingredient might do when released into the environment.

What do the market leaders have to offer us?

Bearing in mind that they must surely own the lion’s share of the market one would expect that Akzo Nobel (parent company for International) might be investing large sums of money into the business of finding a new, environmentally acceptable solution to this age old problem. In reality, however, they don’t seem to be remotely interested.
Having been banned from using TBT, International are now offering us paint which contains various copper compounds instead. Their emphasis appears to be on keeping ships clean at any cost so that they don’t have to burn more fuel and fill the sky with poison.

Big ship antifouling is big business. We hope that Azko Nobel et alia will come up with something which saves ships from needing to burn extra fuel – BUT it has to be something which is harmless to sealife too.

Protecting the atmosphere is vital – and we all know it – but if International had devoted just a small slice of their millions of dollars to the search for a “green solution” then we might not be in this mess; if they had begun to look for a safe solution 20 years ago, when the problem first came to light and TBT was banned from yachting antifoul – then the world might already be using something which is effective and safe for the marine environment.

On the whole, we try our best to avoid giving money to the big corporations. It’s hard to identify one which isn’t either harming the planet or making life miserable for someone, somewhere.  Acting responsibly is completely at odds with Capitalist philosophy. It contradicts a company’s legal duty, which is to act in whatever way will best enrich their shareholders. (Their shareholder’s bank accounts, that is; not their lives or the planet on which they live.)
International spent 20 years filling our oceans with TBT. So far as we are concerned they are criminals and we would be very loathe to buy any product offered by them however green it purported to be; but as it is, they don’t seem to be in the game anyway.

Just add sunshine

e-Paint is an American company which was founded by Alex Walsh – a  guy who wanted to research and produce environmentally friendly coatings. The manufacturer takes a traditional approach to antifouling but gives it a modern, ecologically acceptable twist.  Rather than use toxic metals to persuade the plankton et alia to buzz off, he employs a “patented photo-active technology”.
Essentially, sunlight acts on the pigment in the antifouling causing it to convert water and oxygen into hydrogen peroxide. Thus, so long as the pigment endures, the boat is permanently wrapped in a layer of poison.
Unlike metals, hydrogen peroxide does not stick around in the environment. It quickly reverts to being water and dissolved oxygen. Thus it would seem that the only organisms to be damaged by this technology are the ones which make contact with the hull.

e-Paint products are divided into two categories: those which rely exclusively on creation of the hydrogen peroxide blanket (referred to by the manufacturer as Release Coatings) and those (known by them as Antifoulings) which also contain two biocides.
Again, the biocides are considered to be effective but fairly innocent.  One is Zinc Omadine, which is said to be the active ingredient in dandruff shampoo. (I’ve checked, and it isn’t listed in the ingredients on a bottle of Head and Shoulders anti-dandruff shampoo, but there are two other zinc compounds listed.)
The other biocide is called SeaNine 211. Concerning this (which is a trademarked product) we are told only that it has won an award for its very short half-life.
According to the manufacturer, the two biocides are also quickly broken down into “harmless materials”. It would be nice to know a little bit more about them, since we do like to be sure about these things… but perhaps the company didn’t want to blind us with science.

According to e-Paint, Generally, maintenance scrubbing is only necessary for boats that are stationary for an extended period of time, [and for those] in high-fouling bodies of water, in murky waters that block penetration of sunlight, in anaerobic (low oxygen) bodies of water, or when using a biocide-free product (release coating).
This implies that the antifouling would not have been very effective on the Rio Paraíba – a chocolate coloured stretch of water where we recently spent three months. But then again, nothing else works there either. (If there are any manufacturers reading this article, I recommend that river as the ultimate testing ground for antifoulings.)

e-Paint works best in a clean clear sea like this one, where the sunshine can readliy reach the pigments.

So far as one can judge, e-Paint fits the criteria for an environmentally friendly antifouling, and we hope eventually to be able to test it. But only on our self-steering rudder. This is because e-Paint is an ablative product – it is designed to wear away, thereby ensuring that a new layer of the active ingredients is always ready to do battle – and so it is not a long-lasting solution to the problem of fouling.
If we were slipping our boat every winter then e-Paint might be the way to go. Certainly, it would be worth trying. But since our objective is to spend as many years as possible without having to haul out, the manufacturer’s boast of a 12 to 20 month lifespan makes this product a non-starter.
The self steering rudder, which hangs on the back of the boat, is easily lifted and so we are always very happy to make it available for the testing of anti-foul concoctions. Unfortunately, however, although e-Paint were willing and eager to supply us, they found that they were unable to ship their “hazardous material” overseas.

Eco-speed

A Belgian company has come up with a coating which attempts to replicate the qualities of the one type of flotsam which doesn’t attract settlers: the glass bottle.
Eco-speed is a tough, resilient coating consisting of glass platelets embedded in vinyl ester; and before we go any further I must emphasise the fact that Sub-Sea Industries are not, primarily, marketing the product as an antifouling. They are marketing it as a super-smooth and virtually impenetrable finish with the ability to protect a steel vessel from corrosion.

We first came across Eco-speed when we contacted Greenpeace. “What kind of antifoul are you using on your new, super-squeaky-green sailing ship?” we asked them.
The last time we asked Greenpeace what they were using they wouldn’t tell us – probably because there was nothing then available which was fit for the use of eco-warriors – but this time they put us in touch with Hydrex, the parent company for Sub-Sea Industries.

As you will see, if you visit the Hydrex website, their products are aimed at ships, and so at first we assumed that Eco-speed was one of those Teflon type anti-fouls which is only suitable for vessels which cruise at 12 knots. Further investigation shows that this is not so. Eco-speed is so named because it allows a vessel to slide through the water at top speed – (a super-smooth hull, free of fouling, is more hydro-dynamically efficient, and so less fuel is needed to send her on her way) – and because the saving in fuel and reduction in pollution is an eco, or environmentally-friendly, trait.

You don’t need to spend very long on the Eco-speed page before you realise that this is definitely not the antifoul of which we yotties all dream. The header shows a series of photos, one of which is labelled Cleaning Ecospeed will improve its surface characteristics. It shows a submarine covered in growth.
As if that were not sufficient explanation of what the manufacturer has in mind we also read that Ecospeed is suited to be subjected to regular in-water surface treatment.

When the water is as clear as this diving on the hull has far more appeal than slipping the boat to re-paint her.

On the other hand, if you can come to terms with the idea of under-water maintenance – if you can accept that as part of the deal – Ecospeed does have a lot going for it. You may have to dive on the boat from time to time, but you may never have to slip her again, ever! Provided that it is applied according to the manufacturer’s specifications, and under their watchful eye, this coating comes with a 10 year guarantee and is expected to last the lifetime of the vessel.
It turns out that Hydrex only expect your vessel to last 25 years… but, even so, that’s pretty good going for a coat of antifoul.

According to the manufacturers, the coating is 100% toxin-free and that there is no negative effect on the water quality or the marine environment at any point of its application or use.

Where’s the catch?
Well, from our point of view there are two catches. Firstly, this stuff is not suitable for use over other paints. If we wanted to use it on Mollymawk we would have to blast off our five perfectly healthy layers of epoxy.

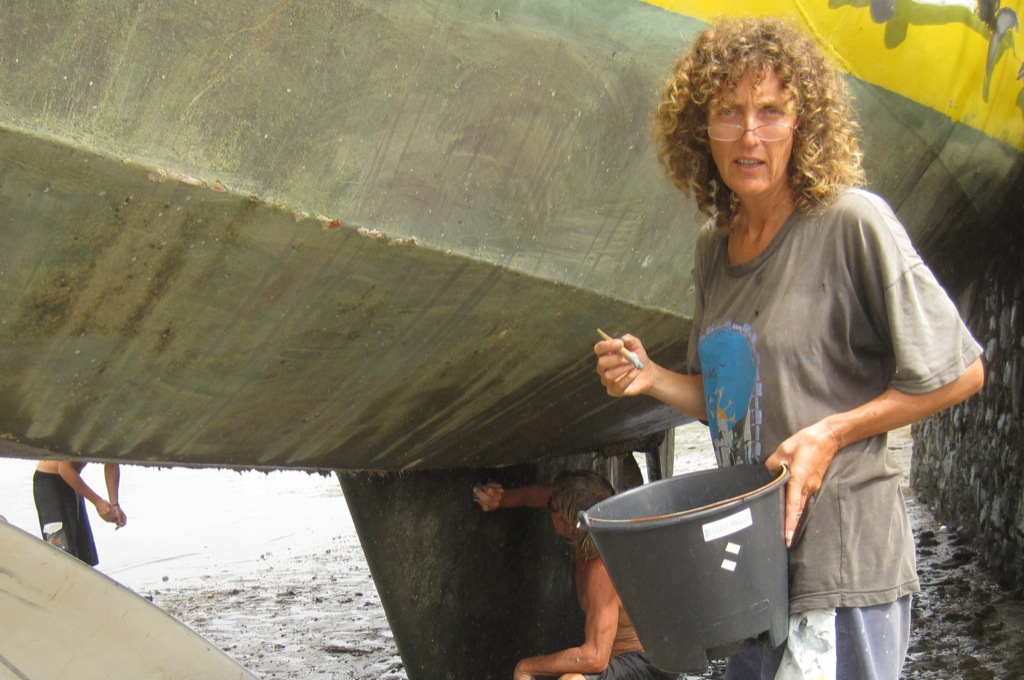

Blast off five perfectly good coats of paint! You’ve got to be kidding!

Secondly, the requisite two coats would cost us more than 3,000 Euros. (This is the cost for 160 litres, which is the amount of paint needed to coat 80 m² of boat to the required thickness. It does not include the cost of hiring an airless spray gun to apply the paint, and it certainly does not include the cost of having a SubSea Industries representative on hand to oversee the operation and to approve the work for guarantee. This supervision costs an extra 600 Euros per day.)

Weighing it all up, if we were starting from scratch – and if we had £3,000 plus, plus, plus, to invest – then I think we might actually go for Eco-speed.  The concept of a bullet-proof coating which lasts for 25 years is highly attractive.
The coating is also suitable for use on GRP, and I would imagine that it offers a  sure-fire protection against external osmosis.
If they bring the price down, this product could revolutionise yachting.

If anybody has first-hand experience of using Eco-speed then we would be very interested to hear from you.
